Sketch of Circuits Using One Battery

ID: SIA2011-0830

Creator: Morse, Samuel Finley Breese 1791-1872

Form/Genre: Document

Date: April 15, 1844

Citation: Smithsonian Institution Archives, Record Unit 7055, Box 5, Folder: 6

Close
Usage Conditions Apply
The Smithsonian Institution Archives welcomes personal and educational use of its collections unless otherwise noted. For commercial uses, please contact photos@si.edu.
Download IIIF Manifest Request permissions Download image Print

Narrow Your Results

Reset

Filter Your Results

Smithsonian Secretaries Information

Close Browse records and papers of the Smithsonian Secretaries, from 1846 until today. Pre-set filters help narrow searches by individuals who have held that office.

Expeditions Information

Close Browse records and papers documenting scientific and collecting expeditions either affiliated with the Smithsonian, or with which Smithsonian researchers participated. Pre-set filters help narrow searches by geographic regions predominantly represented in expedition records.

Professional Societies Information

Close Browse records of professional societies closely associated with the Smithsonian, that focus on areas of scientific research and museum studies. Pre-set filters help narrow searches by major topics and disciplines.


Summary

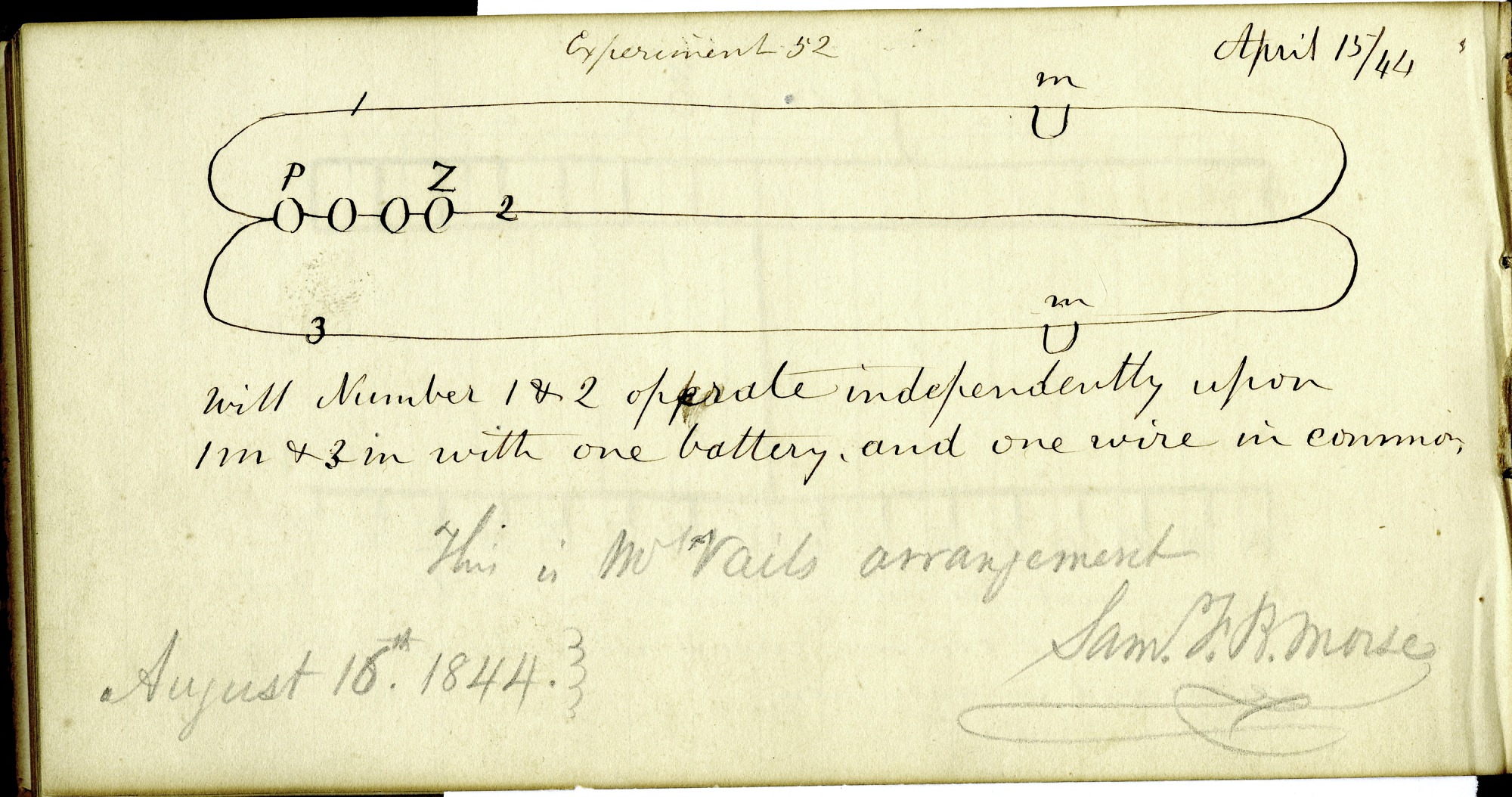

Alfred Vail's sketch is a diagram of one of his experiments. This diagram shows Vail's attempt to connect multiple circuits with one battery and one wire. At the bottom of the letter Samuel Morse has written: "This is Mr. Vail's arrangement. August 16th 1844."
